Empress Effects Midibox 2 MIDI Router, Made in Canada
Run a full Empress pedalboard from a single MIDI source.

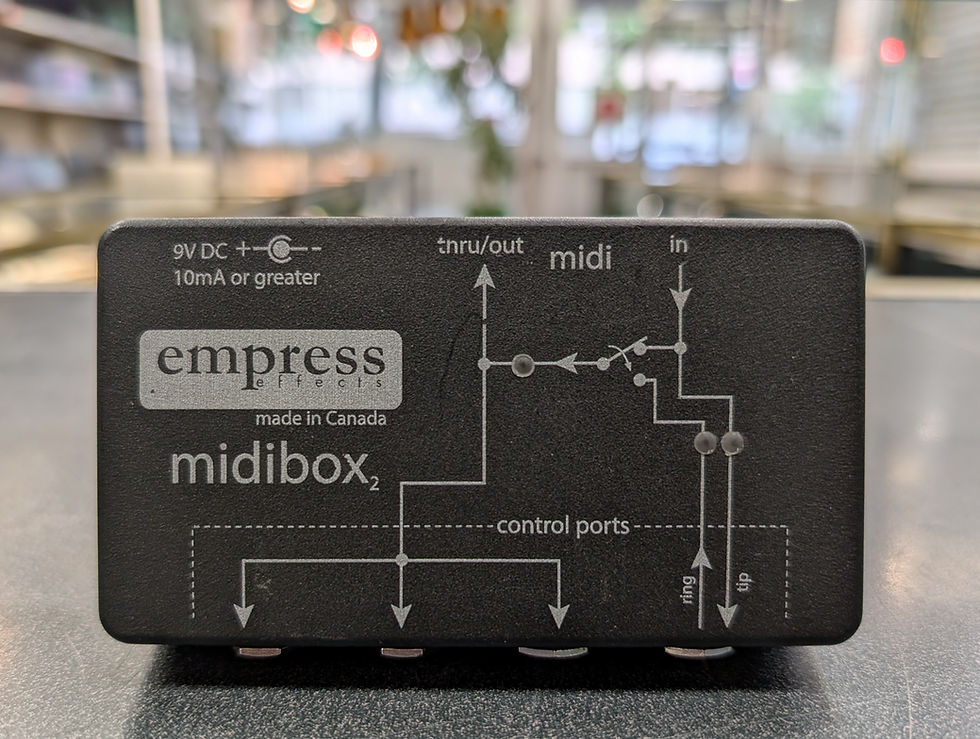

The Empress Midibox 2 is the made in Canada control port router from Empress Effects, built to bring an entire Empress pedal rig under one MIDI source. It converts a standard 5 pin MIDI signal into the control port patch format that Empress pedals use, so one controller or sequencer can address the whole board. Four control port outputs drive up to four Empress pedals at once, an internal dip switch sets the MIDI out behavior and relays messages to the MIDI thru and out connector, and onboard LEDs show exactly where MIDI is being sent.

Condition
Excellent and fully tested. It powers on over 9V DC, works as designed, and all jacks and MIDI ports function. There is one light surface scratch on the top graphic near the logo, shown in the photos, cosmetic only. This is the standard factory Empress unit, not the Chase Bliss Audio modified version, with the control ports in their original Empress configuration.
Included:
Midibox 2 unit only
No power supply, box, or cables. Needs a 9V DC center negative supply rated 10mA or greater

Key Features
Brand: Empress Effects. Model: Midibox 2. Type: MIDI control port router. Made in: Canada

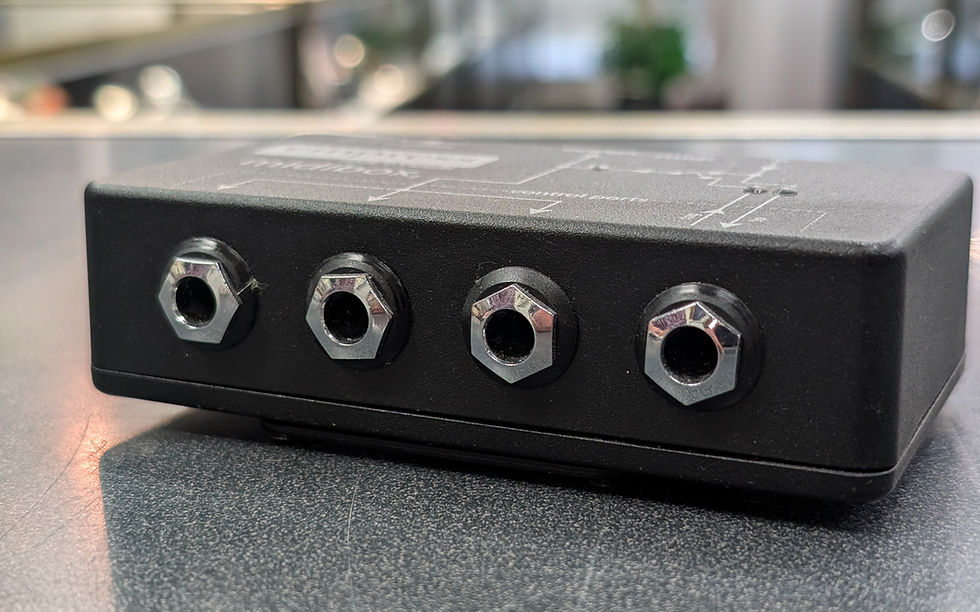

Four control port outputs, drives up to four Empress pedals from one MIDI source
Converts a standard 5 pin MIDI cable into the Empress control port patch format
Internal dip switch sets MIDI out and relays to the MIDI thru and out connector
Onboard LEDs show when and where MIDI is being sent

FAQs

Q: Is it tested? A: Yes. It powers on over 9V DC and all jacks and MIDI ports work as designed.

Q: What power supply does it need? A: A 9V DC center negative supply rated 10mA or greater. One is not included.

Q: Is this the Chase Bliss modified version? A: No. Standard factory Empress Midibox 2, control ports in the original Empress configuration.

Q: How many pedals can it run? A: Up to four Empress pedals at once, through the four control port outputs.
