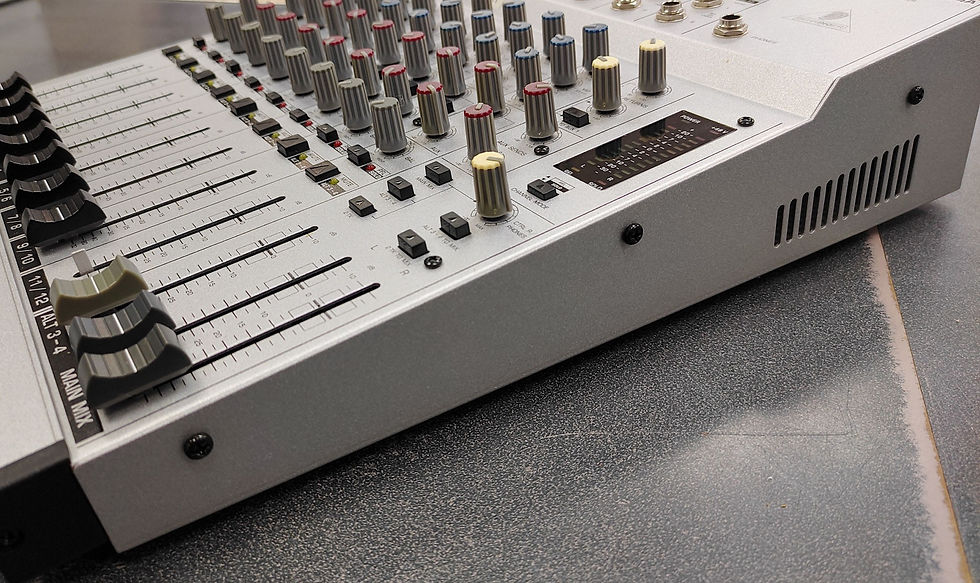

Behringer Eurorack MX1604A 16-Channel 4-Bus Analog Mic/Line Mixer

Versatile compact analog mixer with four mic preamps, four stereo channels, dual aux sends, Alt 3-4 routing and multiple monitoring/output options
The Behringer Eurorack MX1604A is a compact analog mixing console designed for home studios, rehearsal spaces, keyboards, small live setups, recording and general audio routing. Its 16-input architecture combines four dedicated mono mic/line channels with four stereo input channels, along with two stereo auxiliary returns.
It offers individual 3-band EQ, two aux sends, channel mute/Alt 3-4 routing, PFL/Solo monitoring, balanced main outputs, control-room outputs and a dedicated headphone output.

Condition:
Great pre-owned physical condition overall with normal light cosmetic wear consistent with age and use. The controls, input/output jacks, chassis and faders are generally clean and well preserved, as shown in the photos.
One plastic fader cap is missing from the stereo 11/12 channel. The actual fader slider remains present and functioning normally.
The mixer has been basically tested and no known functional issues were found during testing.

Includes:
Behringer Eurorack MX1604A mixer
Compatible AC power supply/adapter, not shown in photos
Not included: Original box, manuals, audio cables, rack hardware or any other accessories

Key Features:
16-Input Architecture: Four mono channels plus four stereo channels provide up to 16 input paths.
Four Mic Preamps: XLR microphone inputs on channels 1–4 with adjustable input gain.
+48V Phantom Power: Rear-panel phantom-power switching for compatible condenser microphones.
Four Stereo Line Channels: Stereo inputs for keyboards, processors, playback equipment and other line-level sources.
3-Band EQ: High, mid and low EQ controls provided across the main channel strips.
75Hz Low-Cut Filters: Switchable low-frequency filtering on the four mono input channels.
Dual Aux Sends: Two auxiliary buses for effects, monitors and external signal processing.
Alt 3-4 Bus: Mute/Alt routing provides an additional stereo bus for more flexible signal management.
PFL/Solo Monitoring: Individual channel monitoring with LED level metering.
Multiple Output Options: Balanced XLR main outputs, 1/4" main and Alt outputs, control-room outputs and headphone monitoring.
2-Track I/O: Stereo RCA tape input and output connections.
Stereo Aux Returns: Two stereo returns for external effects or additional line-level sources.

Technical Specifications:
Brand: Behringer
Model: Eurorack MX1604A
Type: Analog mic/line mixing console
Configuration: 16-input, 4-bus
Mono Channels: 4 mic/line channels
Stereo Channels: 4 stereo pairs – 5/6, 7/8, 9/10 and 11/12
Mic Inputs: 4 × XLR
Line Inputs: 1/4" connections
EQ: 3-band – 12kHz high, 2.5kHz mid, 80Hz low
Low Cut: 75Hz switchable on mono channels
Aux Sends: 2
Stereo Aux Returns: 2
Main Outputs: Balanced XLR and 1/4"
Additional Outputs: Alt 3-4, Control Room and headphones
2-Track Connections: RCA input/output
Phantom Power: +48V
Power: External AC power supply

Frequently Asked Questions:
Is the mixer working properly?
It has been basically tested and no known functional issues were found.
What is missing from the mixer?
The plastic fader cap for stereo channel 11/12 is missing. The underlying fader is still present and functioning normally.
Is the power supply included?
Yes. A compatible AC power supply is included, although it is not shown in the photos.
Does it have phantom power?
Yes. The mixer has switchable +48V phantom power for its microphone inputs.
Are any cables included?
No audio or connection cables are included.
